Presentation Mode

How to use Presentation Mode

Presentation mode is an interactive ‘read-only’ user interface. It includes selectable links and options to update real-time indicators.

UI Overview

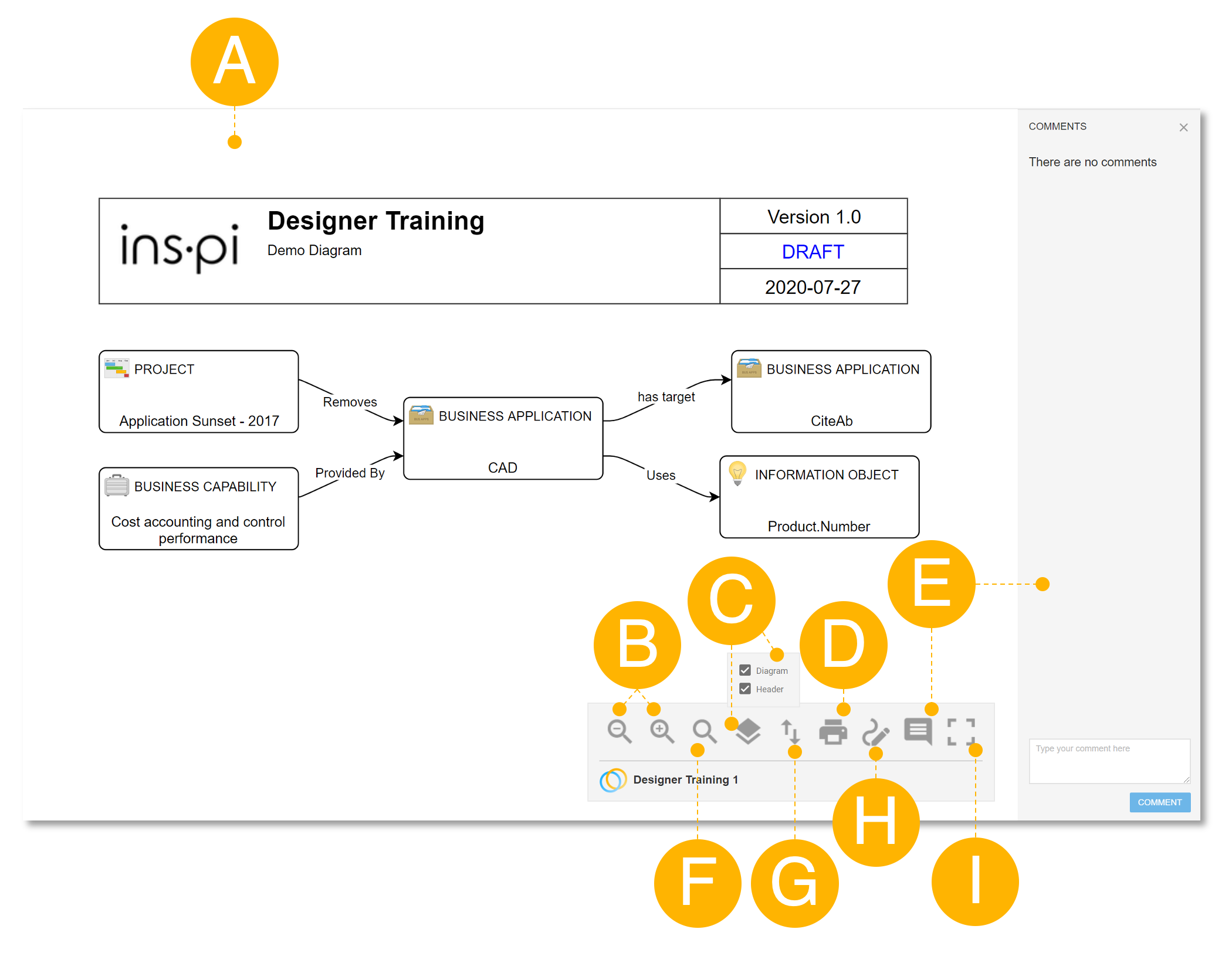

In Presentation Mode a large image of your diagram appears at the center of the screen as well as some simple UI tools on the top right corner.

15811581

Diagram in Presentation Mode

How to open a diagram in Presentation Mode

  1. Open Diagrams as described in Diagram Form.
  2. Select the Diagram you want to open in Presentation Mode.
273273
  1. Select Present.
951951

Presentation Mode toolbar's features

The panel on the top right corner allows you to access functions such as:

IconFunctionExplanation
zoom outzoom outZoom outZoom image out
zoom inzoom inZoom inZoom image in
zoom resetzoom resetZoom resetReset image zoom
toggle layertoggle layerToogle Layers / realtime indicatorsIf your diagram includes layers or realtime indicators you can adjust them with this setting
Print imagePrint imagePrint imagePrint a copy of the image
Drawing toolDrawing toolDrawing toolSwitch to drawing mode
Comment buttonComment buttonCommentToogle comments on and off
Fullscreen buttonFullscreen buttonFullscreenToogle fullscreen mode on and off

Adding a comment

  1. Select the Comment button. The Comments sidebar appears.

  2. Write your comment in the comment box.

  3. Select Comment.

The next time this diagram is opened in Presentation mode, and the comment side panel is toggled on, your comment will be there.
Your comment has now been saved.

To close the Comments sidebar:

  • Select the X button.
10801080

Switch on and off layers and realtime indicators

  1. Select the layers button. The layers sidebar appears.
  2. To toogle on and off realtime indicators: select the realtime indicators switch. To switch on and off individual layers: select the tickbox to the left of it.

To close the layers sidebar:

  • Select the X button.
10801080

Using the drawing (Freehand) tool

  1. Select the drawing button. Your cursor now changes into a crosshair.
  2. You can now draw on top of the diagram.
16121612

If you would like to print or download an image of your diagram with your freehand drawings on top:

  1. Select the drawing button again.
  2. Select the download or printer icons.

Adjust the position of the toolbar

When you first open a diagram in presentation mode the toolbar is pinned to in the top right corner of the image. To move it to a different position:

  1. Select the pin icon to unpin it. (The toolbar may automatically reposition itself).
  2. Select the toolbar box and drag it to where you want it in the image.

If you want to immediately return the toolbars to its initial position:

  • Select the pin icon.
10801080
